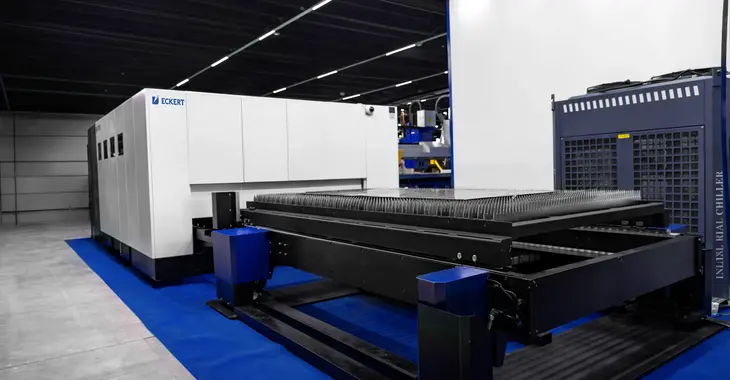

In CNC laser cutting machines, not only the cutting process itself plays a crucial role, but also the way material is prepared and exchanged. This is where automatic pallet exchange systems are used, enabling the change of work tables without any manual intervention by the operator.

Such solutions allow the cutting process to be separated from loading and unloading operations. The entire pallet exchange sequence is performed automatically under the control of the CNC system and integrated safety functions.

Why pallet exchange systems are used in CNC laser cutting machines

In machines equipped with a single work table, each sheet change requires stopping the cutting process. Operations such as loading new material or removing cut parts occupy the working area and cause interruptions in machine operation. An automatic pallet changer makes it possible to separate:

• the cutting process carried out inside the working area,
• loading and unloading operations performed outside the cutting zone.

This allows the next sheet of material to be prepared in parallel with ongoing cutting, without occupying the working area. The solution helps maintain production continuity and improves work organization at the CNC laser cutting machine.

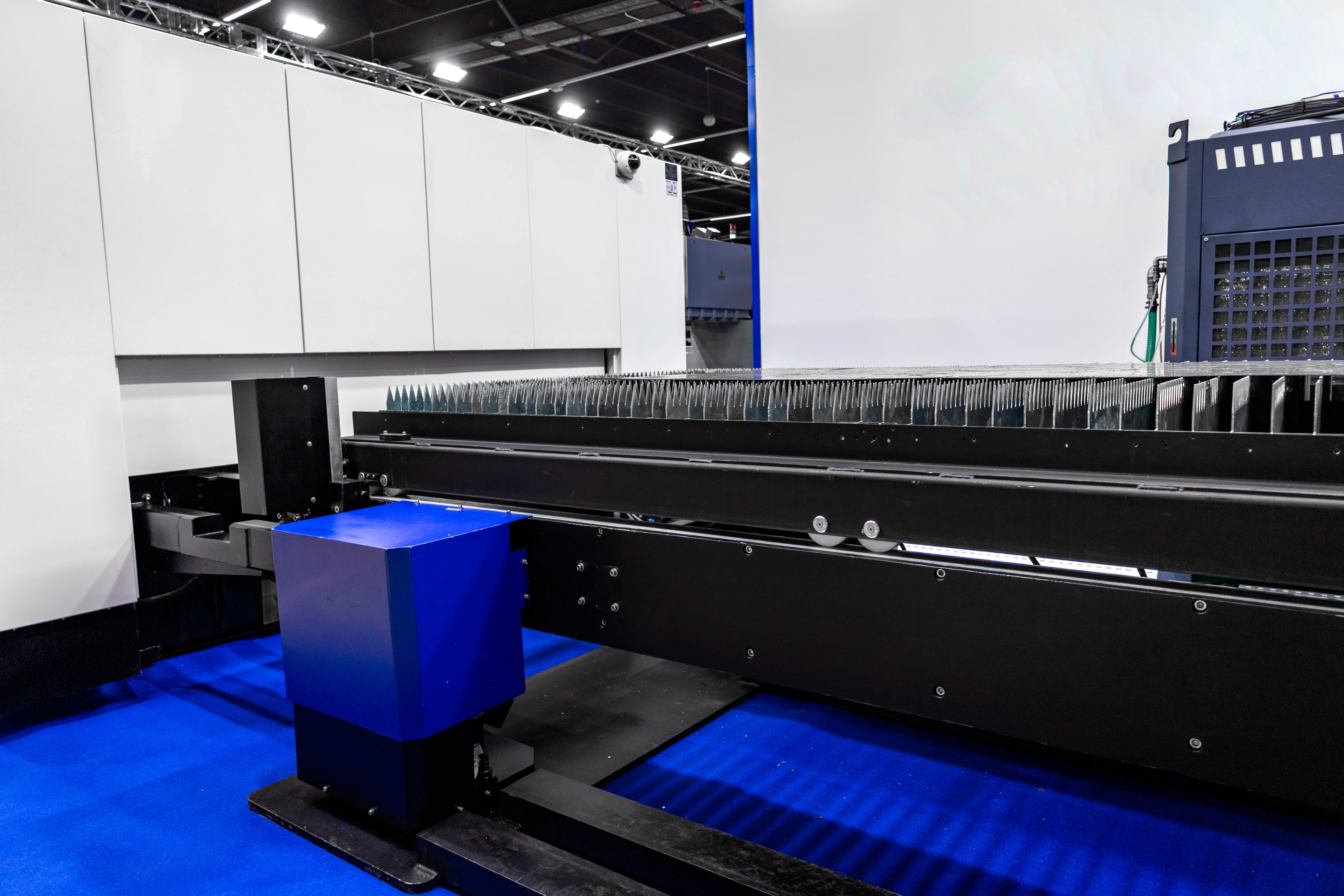

Automatic pallet changer in a CNC laser cutting machine

How automatic pallet exchange is controlled via the CNC system

The pallet exchange process is initiated by the operator directly from the CNC controller, typically using a single command or function. Once activated, the machine switches to a dedicated pallet change mode.

In a typical sequence:

• the system verifies safety conditions and interlocks,
• the pallet located in the working area leaves the cutting zone,
• the second pallet, prepared outside the working area, moves into the cutting position,
• after the exchange is completed, the machine returns to a ready-for-operation state.

The operator does not manually control the movement of the work tables. The entire sequence is executed automatically and repeatably by the CNC control system.

Safety during automatic pallet exchange in laser cutting machines

The automatic pallet exchange system in CNC laser cutting machines is closely integrated with the machine’s safety systems. Their purpose is to protect the operator from access to the working area and to ensure controlled, safe table movements.

Typical safety elements include:

• safety doors, whose closed state is required to start the exchange sequence,
• a protective enclosure of the cutting zone acting as a barrier against laser radiation,
• position sensors for pallets and guards, confirming correct execution of each step,
• logical interlocks within the CNC controller, preventing pallet exchange if safety conditions are not met.

The operator initiates the process, while its safe execution is fully supervised by the machine automation and integrated safety systems.

Automatic pallet exchange – video material

The video below complements the technical description and helps illustrate the pallet exchange process without being instructional in nature.

Impact of automatic pallet exchange on work organization and material flow

From a production organization perspective, an automatic pallet table streamlines the operation of a laser cutting station. The operator can prepare the next sheet of material outside the working area without waiting for the current cutting cycle to finish.

In practice, this makes it possible to:

• reduce production downtime,
• maintain a consistent operating rhythm of the machine,
• organize the material flow around the CNC laser,
• simplify work planning during a production shift.

This solution is suitable both for batch production and for applications involving frequent material or job changes.

Pallet system in an automated production line

In modern industrial facilities, the automatic pallet exchange system increasingly forms part of a broader automated production line. The pallet changing system can be integrated with additional modules such as automatic sheet loading systems, part unloading solutions, material storage systems and internal transport systems.

As a result, the  CNC laser cutting machine can operate in a partially or fully automated mode, which is particularly important in high-repeatability production and applications requiring unattended operation.

Summary

An automatic pallet table is a system solution that combines work table mechanics, CNC control and safety systems into a single, coherent process. It enables safe and repeatable pallet exchange, improves work organization and provides a foundation for further automation of laser cutting stations and entire production lines.
