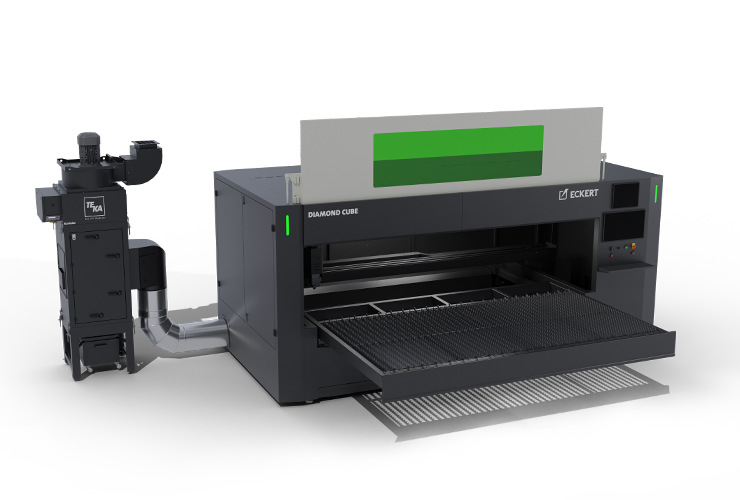

Diamond Cube Laser
Designed for small spaces and reasonable budgets.
Diamond Cube Laser
Designed for small spaces and reasonable budgets.
Characteristics
Deciding on the Diamond CUBE laser, you are choosing a well-thought-out, complete system that meets the highest quality standards - developed in Germany, manufactured in Europe. Thanks to its well-thought-out design and ergonomics, it perfectly meets the needs of modern enterprises - especially where reliability, space saving and intuitive operation are important.
Main Features
- Universal working area of 3000 × 1500 mm:
Optimal cutting area, allowing you to realize most orders in the metalworking industry. - Compact design in 12 m² - excellent organization of space.
Machine dedicated to companies that value working comfort and efficient use of hall space. - Integrated CAD/CAM software:
Fast nesting and intuitive production planning guarantee full control over the cutting process. - Ergonomic front-loading system:
Removable work table facilitates handling and makes efficient use of hall space. - European quality and premium components:
The machine is equipped with Panasonic servo drives, HIWIN linear guides, and a Raycus laser source, ensuring smooth motion, precise positioning, and the ability to process sheets up to 30 mm thick with a load capacity of up to 1500 kg, at a maximum positioning speed of 120 m/min.
Technology

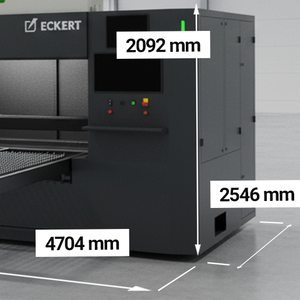

Occupied space
Occupied space
The machine, with overall dimensions of 4704 × 2546 × 2092 mm, has been designed to take up as little floor space as possible while maintaining full functionality. Every inch of space can be used efficiently, and the operator has easy access to all functions.

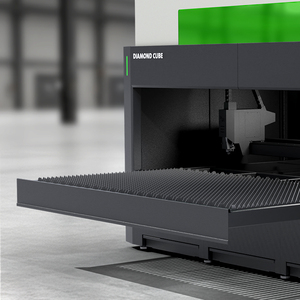

Front loading table
Front loading table
The integrated motorized table can be extended from the front of the machine, providing ergonomic and safe access to the cutting area and making material handling easier. The Diamond Cube does not require any additional support legs for the front-loading table, further minimizing the required production space.

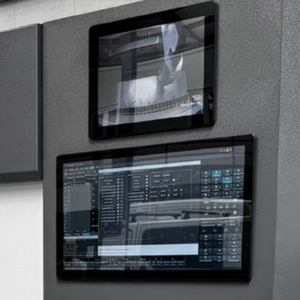

Integrated CAD/CAM software
Integrated CAD/CAM software
The programming allows quick preparation and placement of workpieces on the sheet, minimizing material waste, and is operated directly on the controller's 24-inch display. This solution allows for easy and intuitive programming, reduces job preparation time and increases operator productivity.

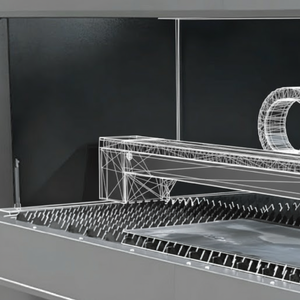

Design
Design
The machine is made of a sturdy steel frame, ensuring high rigidity and resistance to vibration. The closed, compact chassis optimizes airflow, guaranteeing high smoke and dust extraction efficiency to improve working conditions.

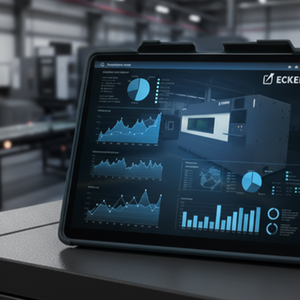

Industry 4.0
Industry 4.0
The machine supports OPC-UA, MQTT and Modbus protocols, enabling integration into a digital manufacturing environment, remote monitoring and process automation. This allows operators and managers to better control machine operation, optimize productivity and reduce production response times.
-
Compressor
Compressor
A high-quality air compressor that guarantees the supply of clean, high-quality air required for the proper operation of the cutting system, filter unit, and cutting table. The compressor is equipped with a refrigerated air dryer, filters, and a 500-liter storage tank.
