Ruby MAX
Solid solution for demanding beginners.
Ruby MAX
Solid solution for demanding beginners.
Characteristics
Plasma cutting machine Ruby MAX is the best choice for enterprises which from the beginning look for professional solutions at attractive price.
Main features
- Equipped with high quality branded components to provide optimum availability and lifetime of the cutting machine
- High stability and cut quality thanks to a statically separated construction of cutting table and roadway
- Solid steel construction designed with view to high thermal resistance
- Utilization based on experience with High-End machines
- High cut efficiency with relative low operation cost
Technology

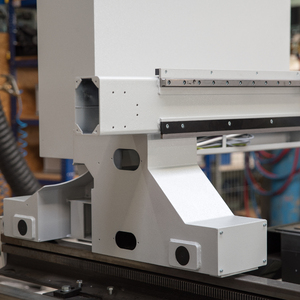

Construction
Construction
The robust and temperature-resistant steel construction enables high repeat accuracy at cutting of 1 mm - 100 mm material thickness - even in continous operation.

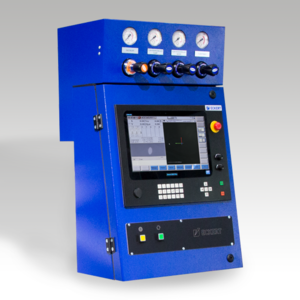

CNC Plus Controller
CNC Plus Controller
Intuitive and modern Smart CNC Plus controller allows productive operation. Due to integrated remote technical assistance, operators achieve fast and reliable support to all questions and issues.

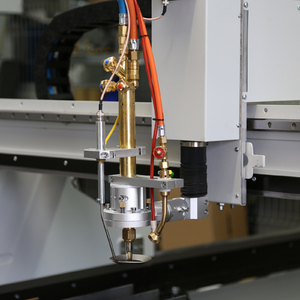

Oxygen torch
Oxygen torch
As one of market leader optional gas torch from Harris brand is perfect solution for thick materials. Torch is also equipped with height sensor, automatic igniter and manual adjustment of cutting angle. Ideal supplement of plasma cutting for sheet cutting up to 100 mm thickness.
Suction table
Suction table
Modular cutting table by Eckert is static free standing so it is durable in its construction. In addition, it has a removable baseframe in which the entire cut grate is exposed for quick and easy cleaning of slag boxes a few steps. This construction type warrants safe and productive way of work.

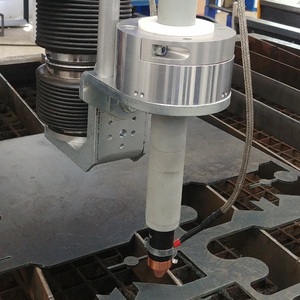

Plasma support
Plasma support
Integrated e-Touch sensor provides optimum cutting height in order to achieve the best possible cutting result for any material thickness. Standard protection for collision prevents damage of torch and immediately stops cutting process in case of collision.
-
Suction table -
Air Booster
-
Water table
-
Compressor
-
Ventilation
-
Fume exhaust system
Suction table
Suction tables ensure efficient reducion of fumes generated during the cutting process. A self-standing structure is used in the cutting machine, which means that the work table is not physically connected to the rails. This construction ensures there is no heat influence from the table and eliminates the transmission of vibration from the table to the rails to ensure long service life of the rails and the best possible cutting quality.
Air Booster
Installation that boosts the existing air pressure from 6 bar up to 12 bar. Thanks to the use of an amplifier we can avoid buying an additional compressor.
Water table
The use of a water table in plasma cutting technology has a beneficial effect on reducing the deformation of cut parts, reducing the noise level and improving the quality of the edges of the cut element. Implemented solutions from high-tech cutting machines, such as independent table construction from rail track and bridge, increase the stability, cut accuracy and service life of the machine. Using the water table does not require the installation of a filtering system.
Compressor
A high level air preparation unit that guarantees high quality air necessary for the proper operation of the plasma source, filtering unit, abrasive dosing systems (waterjet) and cutting table. The compressor is equipped with a cooled dryer, filters and a 500 l storage tank.
Ventilation
Fans are used to extract vapors and exhaust gases generated during metal cutting operations from the suction table. Depending on the situation, fans can be installed indoor or outdoor.
Fume exhaust system
Fume exhaust system is used to eliminate potentially dangerous fumes and dust by-products of thermal cutting operations. We offer models with filter area within the range 80 to 240 m2 and efficiency up to 15.000 m3/h. The optional spark extinguishing system guarantees damping down glowing embers and provides a longer lifetime of filter cartridges.
