Characteristics

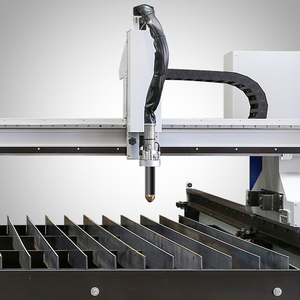

The Ruby HD plasma-oxygen plasma cutting machine is designed for businesses looking for measurable benefits at an extremely attractive price. It is a device whose most important features are: brand components, optimized construction, ergonomic handling, good cutting quality and low running costs.
Main advantages
- Attractive price for a richly equipped basic version
- High class equipment from prestigious suppliers
- Cutting capacity of steel from 1 mm to 100 mm thickness
- High durability thanks to the independent construction of the bridge and working table
- Solid construction based on steel profiles
- Unmatched ease of use
- Excellent cutting results thanks to the plasma sources of a reputed brand
Technology
Construction
Construction
In addition to a robust steel gantry solution the machine consists high class components from presitious suppliers. These are powerful motors from Panasonic as well as high precision linear slides and ball guides from Schneeberger.
Smart CNC Plus Controller
Smart CNC Plus Controller

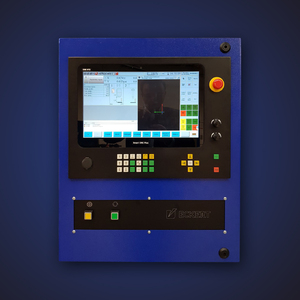

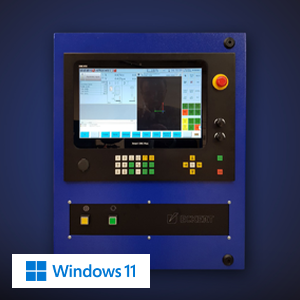

Modern Smart CNC Plus controller is high quality industry device. Rich functionality of proprietary software and intuitive interface make possible to use machine advantages even by inexperienced operator.
Suction table
Suction table
Modular suction tables grant efficient elimination of dust during the cutting process. The cutting machine was implemented with the self-supporting construction as the base for the frame with replaceable grids. Such construction offers safe and the best possible safety and performance of the table. The cutting table is provided with intelligent system of dust discharge from the cutting area. Each segment consists of supporting structure with discharge channels, diagonal gird, scrap tank and pneumatic controlled channels.
Oxygen torch
Oxygen torch

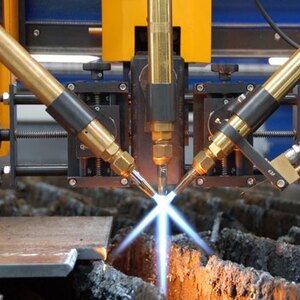

Oxygen torch is the cutting solution destined to cut structural low-carbon and low-alloy steel. It is capable of processing wide range of material thickness. The torch was fitted out the height sensor, automatic ignition and possibility of manual angle setting.
Plasma support
Plasma support
Support allows fully use of equipped plasma torch. Except classical cutting, there is possibility of plasma marking with lower amperage.
-
Suction table -
Water table
-
Air Booster
-
Compressor
-
Ventilation
-
Fume exhaust system

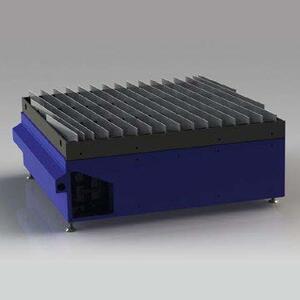

Suction table
Suction tables ensure efficient reducion of fumes generated during the cutting process. A self-standing structure is used in the cutting machine, which means that the work table is not physically connected to the rails. This construction ensures there is no heat influence from the table and eliminates the transmission of vibration from the table to the rails to ensure long service life of the rails and the best possible cutting quality.
Water table
The use of a water table in plasma cutting technology has a beneficial effect on reducing the deformation of cut parts, reducing the noise level and improving the quality of the edges of the cut element. Implemented solutions from high-tech cutting machines, such as independent table construction from rail track and bridge, increase the stability, cut accuracy and service life of the machine. Using the water table does not require the installation of a filtering system.
Air Booster
Installation that boosts the existing air pressure from 6 bar up to 12 bar. Thanks to the use of an amplifier we can avoid buying an additional compressor.
Compressor
A high level air preparation unit that guarantees high quality air necessary for the proper operation of the plasma source, filtering unit, abrasive dosing systems (waterjet) and cutting table. The compressor is equipped with a cooled dryer, filters and a 500 l storage tank.
Ventilation
Fans are used to extract vapors and exhaust gases generated during metal cutting operations from the suction table. Depending on the situation, fans can be installed indoor or outdoor.
Fume exhaust system
Fume exhaust system is used to eliminate potentially dangerous fumes and dust by-products of thermal cutting operations. We offer models with filter area within the range 80 to 240 m2 and efficiency up to 15.000 m3/h. The optional spark extinguishing system guarantees damping down glowing embers and provides a longer lifetime of filter cartridges.
