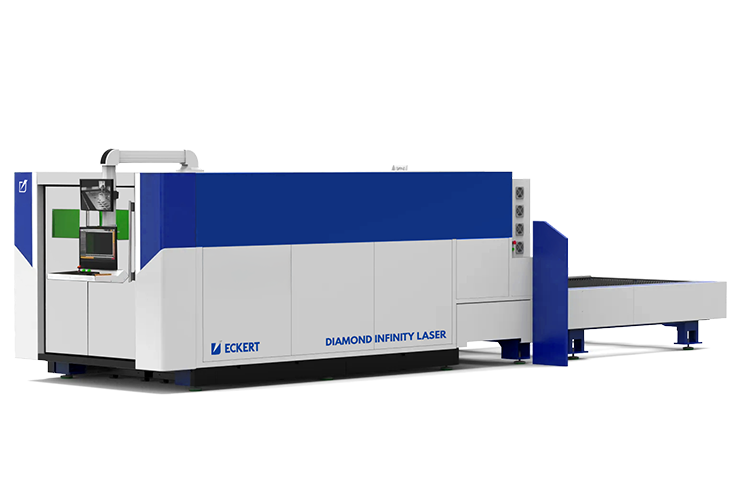

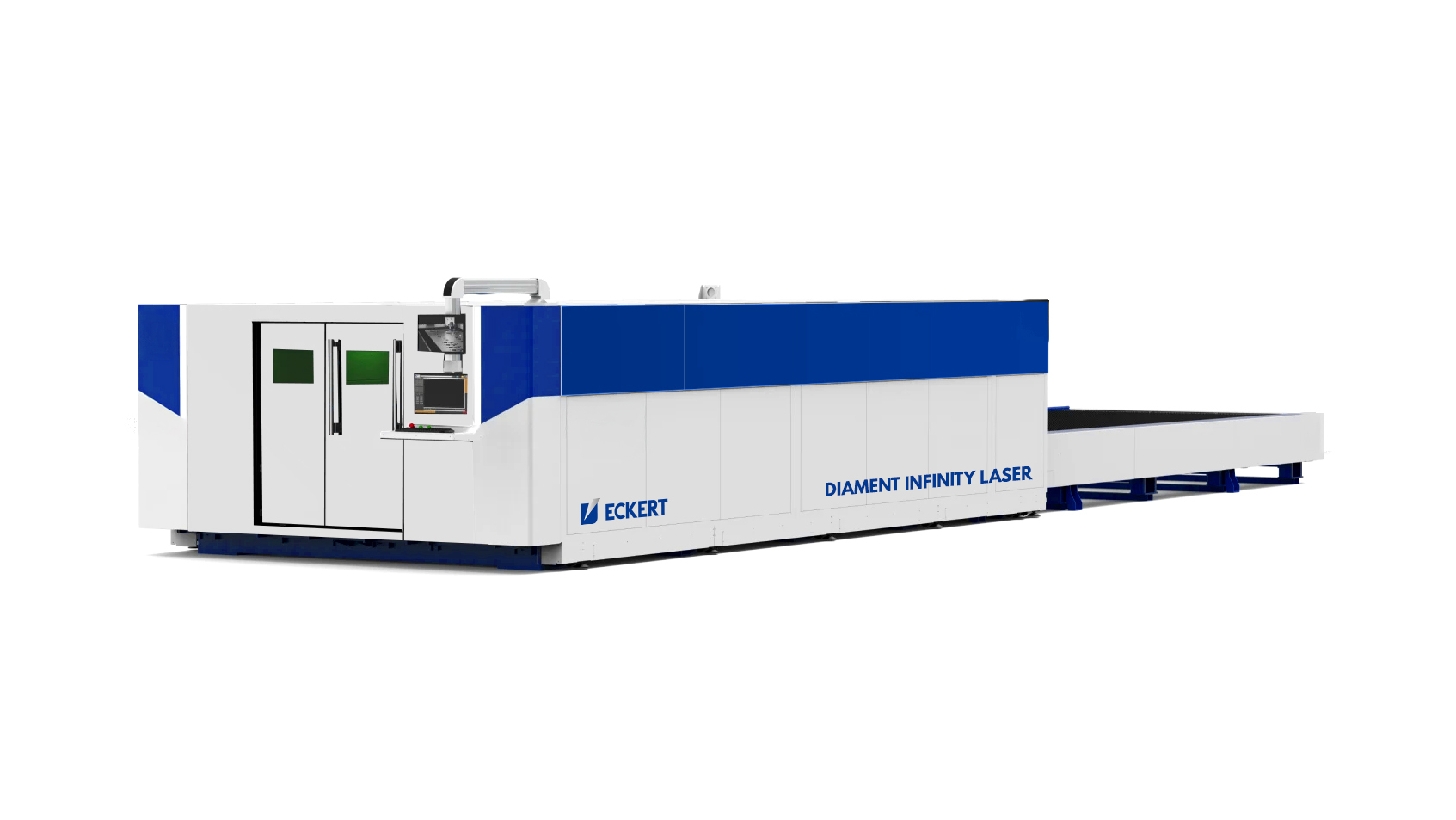

The Infinity laser is a solution designed for the most demanding sheet metal processes. Thanks to its innovative technologies and well-thought-out design, the device supports production optimization, ensuring stable operation even under intensive use. Designed with attention to every detail, this system perfectly fits the needs of the modern metal industry.

Main features

Modern material cutting technology
Exceptionally precise and fast cutting
Reliability thanks to the highest quality components, from renowned manufacturers
Customer support and service provided by a european manufacturer

Technology

Laser head

The cutting head, equipped with an advanced auto-focus system, ensures precise cutting of various materials of varying thickness. Integrated sensors monitor the distance to the material, ensuring process stability and minimizing the risk of collision. A built-in collision protection system reduces the risk of damage. A cooling system protects optical components from overheating, resulting in long component life.

Systems and functions

Advanced technology incorporated into the machine enhances productivity and cutting precision by combining innovative solutions. Multi-stage perforation enables efficient processing of thick sheets, and the FLYCUT function speeds up the process by eliminating unnecessary head movements. The PCS system monitors perforation in real time, allowing cutting to begin immediately, and dynamic calibration further ensures stability and top quality machining.

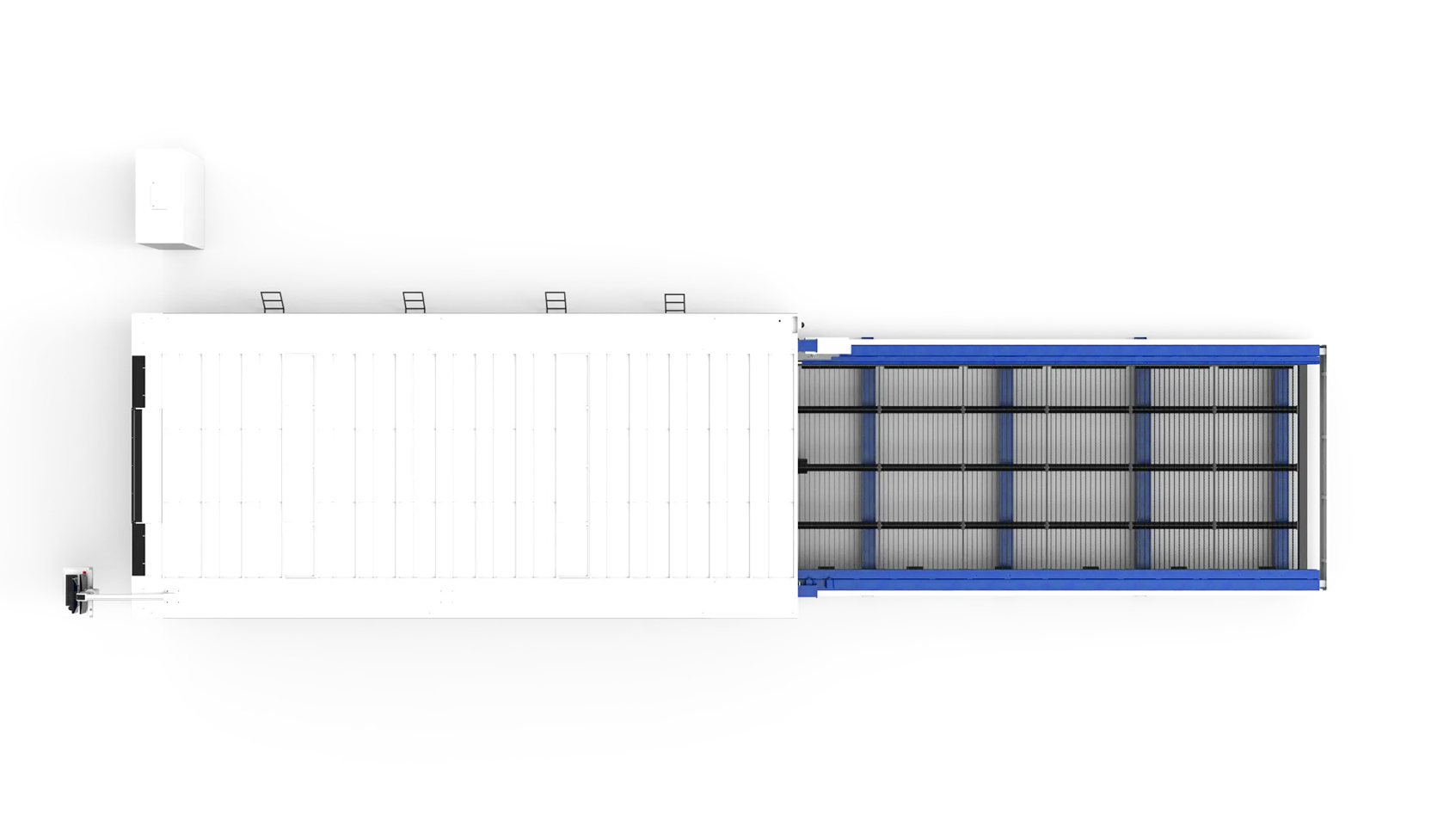

Automatic pallet table

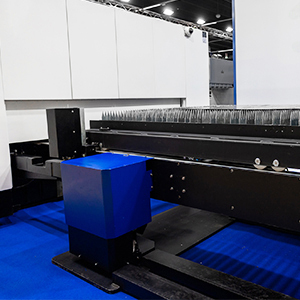

The two-level interchangeable pallet system allows simultaneous cutting on one pallet and loading of material on the other, which minimizes downtime and increases production efficiency. The system's design ensures stability when handling heavy sheets, and the interchange mechanism guarantees a smooth process.

Software and control

The touchscreen user interface provides intuitive operation and quick settings, facilitating the operator's daily work. A built-in material library automatically selects optimal cutting parameters, reducing setup time and eliminating the risk of errors. Remote access to the machine and its components enables instant diagnostics and technical support, ensuring uninterrupted operation.

Construction

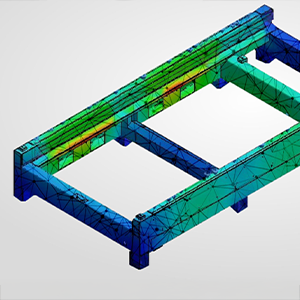

The rigid, monolithic design eliminates the risk of vibration and deformation even under extreme acceleration. The extraction system effectively removes smoke and dust, improving working conditions and protecting machine components.

Cutting process and loading table area monitoring system

An optional in-cab-mounted CCTV camera provides a constant view of the work area and the cutting process - without having to stop work or open the guard. It facilitates ongoing inspection and allows to quickly catch possible irregularities or failures. An additional camera, installed behind the body of the machine, allows observation of the loading table area.

Automatic sheet orientation with SLTL head

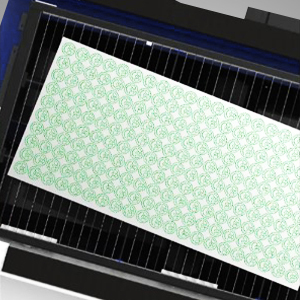

The automatic sheet orientation function speeds up the cutting process by eliminating the need to manually align the sheet before each cut. The software automatically detects the angle of the sheet and adjusts the program accordingly, eliminating unproductive time spent re-aligning the material.

Safety

The laser cutting machine is equipped with a light barrier controlled by an intelligent sensor system. In the interest of safety, if the sensors detect the presence of an object or person in the working area, the system will immediately stop the machine's pallet change process.

Do you want to know more?

Configurations

Ventilation
Compressor
Fume exhaust system

Gallery

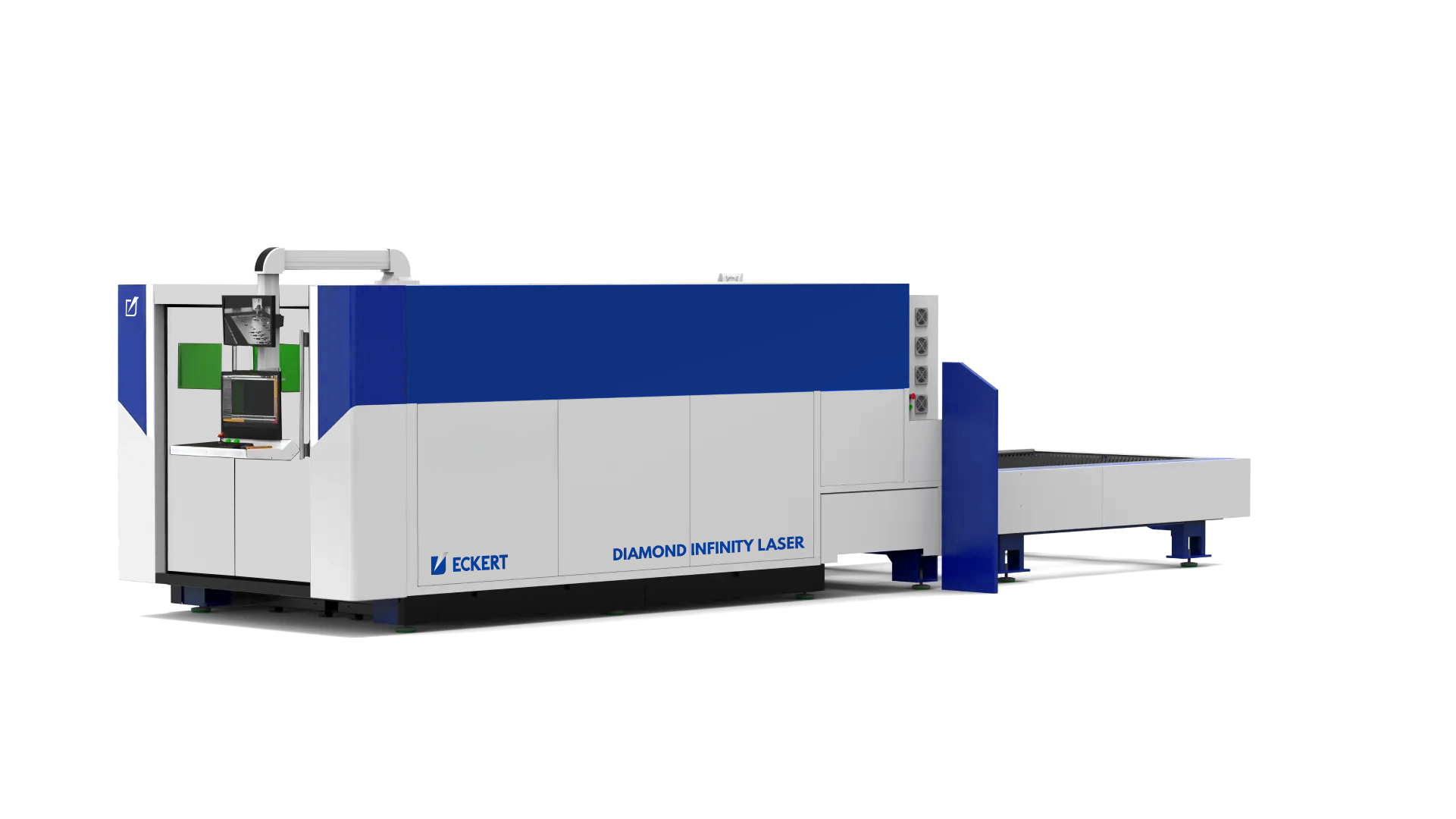

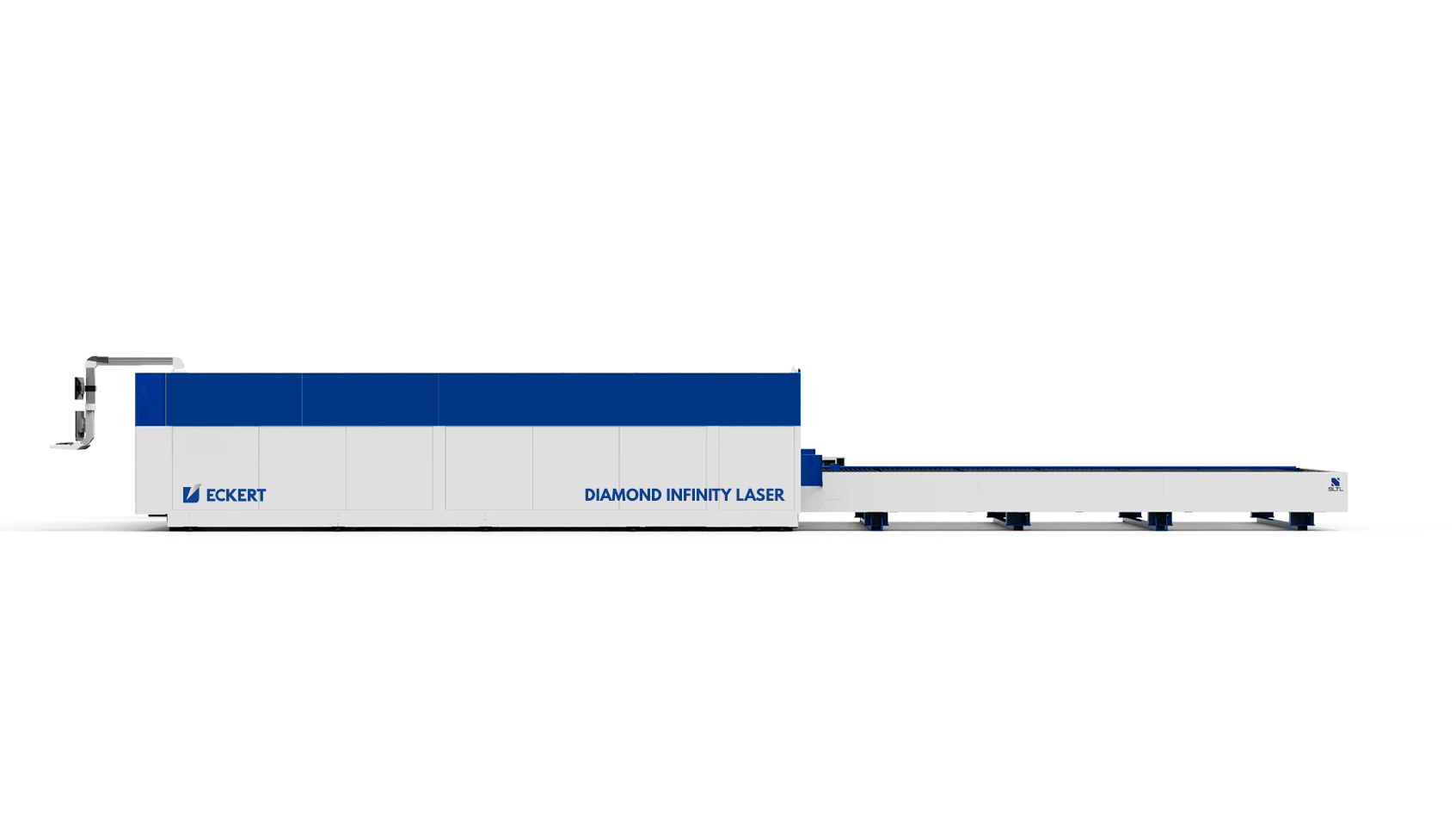

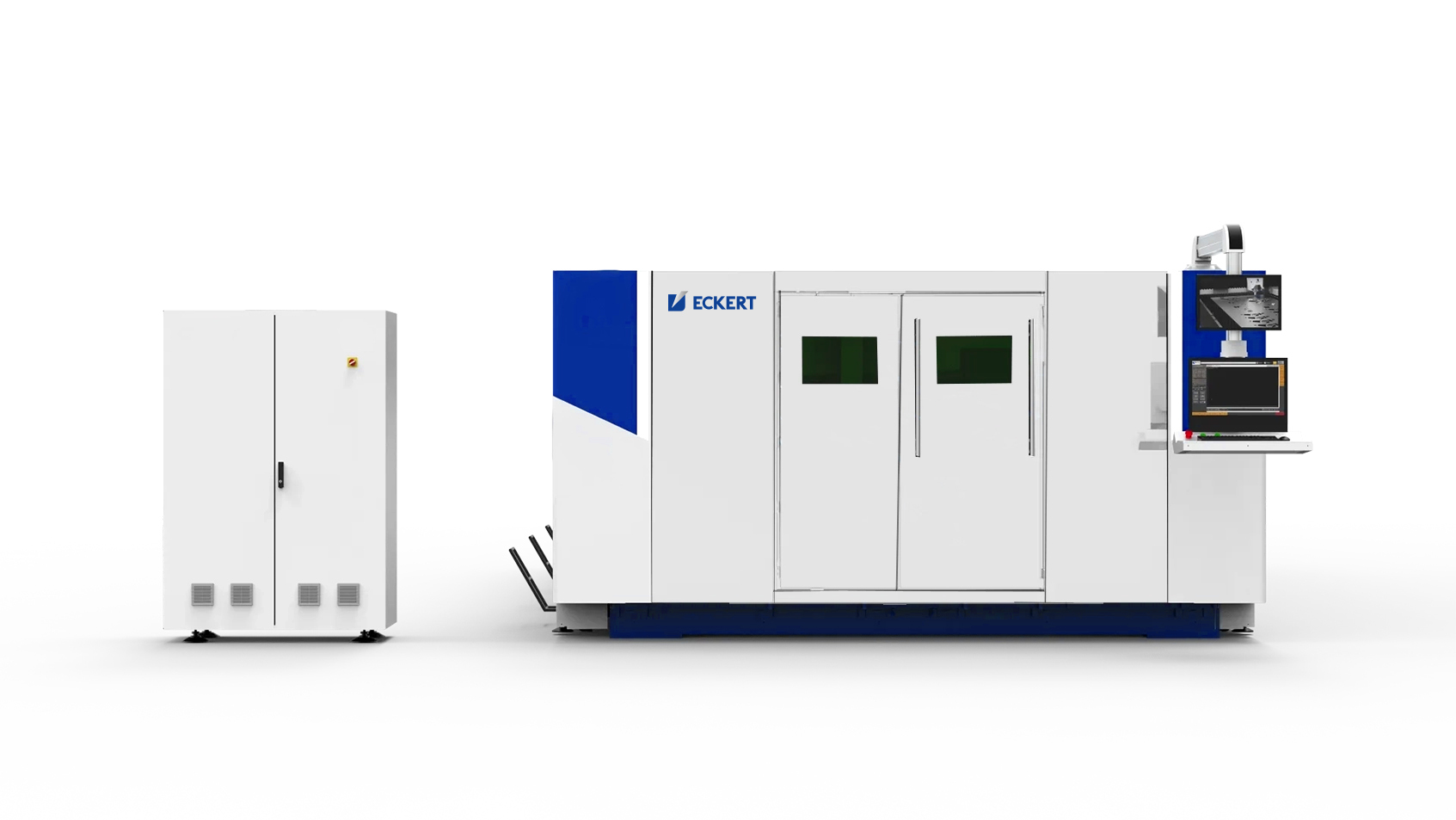

Infinity Laser

Download

Technical data

Model	Diamond Infinity Laser
Drives	AC Servo
Available Working Areas (mm)	1.500 x 3.000 / 2.000 x 4.000 / 2.500 x 6.500 / 2.500 x 8.000
Maximum Acceleration at working area 1.500 x 3.000 mm	2 G
Maximum Acceleration at working area 2.000 x 4.000 mm / 2.500 x 6.500 mm / 2.500 x 8.000 mm	1,5 G
Z-Axis Travel	300 mm
Positioning Accuracy	+/- 0,05 mm/m
Repeatability	+/- 0,02 mm/m
Laser Power	3 kW - 30 kW
Power Supply	3 Phase, ± 400V/50HZ
Certificate	CE - 2006/42/EC

Laser sources MAX Photonics / IPG Germany / Raycus

Laser power	Mild steel (O2)	Mild steel (N2)	Stainless steel (O2)	Stainless steel (N2)	Aluminum (N2)	Brass (N2)	Copper (O2)	Galvanized steel (O2)**
3 kW	20 mm	6 mm	10 mm	8 mm	8 mm	6 mm	5 mm	3 mm*
4 kW	22 mm	6 mm	10 mm	10 mm	10 mm	8 mm	6 mm	3 mm*
6 kW	25 mm	8 mm	10 mm	16 mm	16 mm	12 mm	8 mm	3 mm*
8 kW	28 mm	10 mm	10 mm	20 mm	21 mm	16 mm	10 mm	3 mm*
10 kW	30 mm	12 mm	10* mm	25 mm	25 mm	20 mm	12 mm	3 mm*
12 kW	40 mm	12 mm	10 mm	30 mm	30 mm	25 mm	16 mm	3 mm*
15 kW	45 mm	16 mm	10 mm	32 mm	32 mm	30 mm	18 mm	3 mm*
20 kW	50 mm	20 mm	10 mm	35* mm	35* mm	32* mm	20 mm	3 mm
30 kW	60 mm	25* mm	10 mm	40* mm	40* mm	35* mm	22 mm	3 mm

* The quality of the cut depends on the properties of the metal, its surface and the conditions under which the cutting process takes place. Metals that are thick may show streaks on the lower edges.

**Galvanized steel (Gl) is commercially available up to a maximum thickness of 3mm.

Ventilation

Fans are used to extract vapors and exhaust gases generated during metal cutting operations from the suction table. Depending on the situation, fans can be installed indoor or outdoor.

Compressor

A high-quality air compressor that guarantees the supply of clean, high-quality air required for the proper operation of the cutting system, filter unit, and cutting table. The compressor is equipped with a refrigerated air dryer, filters, and a 500-liter storage tank.

Fume exhaust system

Fume exhaust system is used to eliminate potentially dangerous fumes and dust by-products of thermal cutting operations. We offer models with filter area within the range 80 to 240 m2 and efficiency up to 15.000 m3/h. The optional spark extinguishing system guarantees damping down glowing embers and provides a longer lifetime of filter cartridges.
