Characteristics
Diamond Fiber Laser cutting machine that operates with a fiber laser technology. It is dedicated to users whose priority is speed and the highest cutting precision also in complicated contours. The utilization of fiber laser technology significantly decreases the complexity of laser system and directly reduces operating costs compared to CO2 laser technology.
Individual consumer's needs are ensured by the application of compact gantry construction that enhances stability, completely closed safety cabinet protecting against laser radiation and capability of adjusting the working area dimensions.
Main features
- state-of the art cutting technology
- capability of processing a wide range of reflective materials (copper, brass, polished materials)
- long-term reliability ensured by the highest quality components produced by renowned manufactures
- innovative PCS system which is able to analyse and precisely select piercing time with accordance to the material applied (optional)
- optional instalment of linear actuators to replace servomotors
- fully automated cutting process with load and unload of the plates (optional)
Technology
Construction
Construction

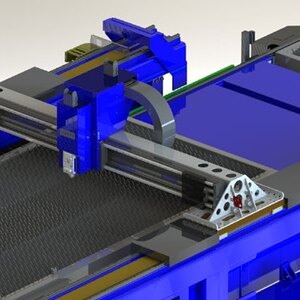

Portal construction assures stability and endurance of the whole machine. Completely closed safety cabinet covering the entire cutting area and the utilization of exchangeable pallet tables increase the work safety. The construction of the railway is based high precision linear slides and modern servo motors to guarantee accuracy cutting head set-up, high dynamics and trouble-free operations.
ECS872 Control Panel
ECS872 Control Panel
ECS872 centre is a high quality industrial device, equipped with touch screen. Efficient components and construction resistant to extreme production conditions guarantee failure free operation. Unsurpassed functionality of proprietary software and intuitive drive interface enable full exploitation of the machine’s capacity.
Automatic pallet table
Automatic pallet table

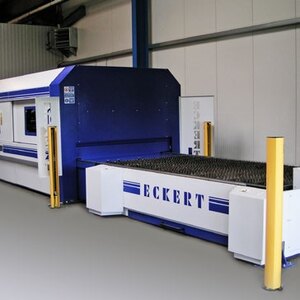

Exchangeable pallet table consists of two working areas which enable the possibility of alternate entering and departing the working area allowing the unloading of finished elements and loading new material. Pallet table is equipped with belt feeder responsible for collecting elements which are to small to retain on the grate. The table is equipped with safety laser gates to realize the required safety of work.
Cutting head with PCS
Cutting head with PCS

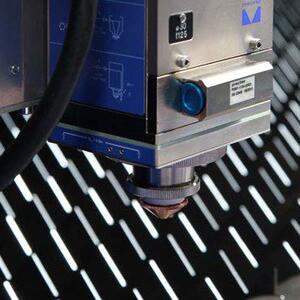

Precitec cutting head ensures exceptional reliability and cutting quality. Integrated distance sensor safeguards stability and prevents collisions. To protect its high grade optical components, this cutting head is fitted with a protective glass which is located in the cartridge. Optionally installed, innovative PCS (Piercing Control System) controls the laser beam emission while enhancing efficiency and productivity.
-
Monitoring of working area -
Automatic pallet table
-
Plate feeder
-
Automatic loading/unloading system
-
Piercing Control System
-
Fume exhaust system
Monitoring of working area
Optionally industrial camera can be installed in the cabin and in the palette table area which enables the monitoring of the working area, cutting process and palette changes – without work interruption. The solution offers the reduction of potential errors and failure free cutting process.
Automatic pallet table
Exchangeable pallet table consists of two working areas which enable the possibility of alternate entering and departing the working area allowing the unloading of finished elements and loading new material. Pallet table is equipped with belt feeder responsible for collecting elements which are to small to retain on the grate. The table is equipped with safety laser gates to realize the required safety of work.
Plate feeder
Plate feeder of manual work-stand is an optimal design for Eckert laser cutting machines. The basis of the system is the vacuum lifter designated to move sheets sizes of 1500x3000 mm and thickness 0,5-16 mm.
Automatic loading/unloading system
Automatic loading/unloading system eliminates manual sheet handling. It is designed to help improve productivity and increase profits by reducing lead-time cutting costs.
Piercing Control System
Innovative system designed to reduce piercing time is based on the optical analysis of colour and temperature of piercing hole, which minimizes the piercing time rapidly. LPM (Laser Power Monitor) analyses laser cutting process and takes control over the emission of laser beam consequently prevents slag eruptions.
Fume exhaust system
Fume exhaust system is used to eliminate potentially dangerous fumes and dust by-products of thermal cutting operations. We offer models with filter area within the range 80 to 240 m2 and efficiency up to 15.000 m3/h. The optional spark extinguishing system guarantees damping down glowing embers and provides a longer lifetime of filter cartridges.
