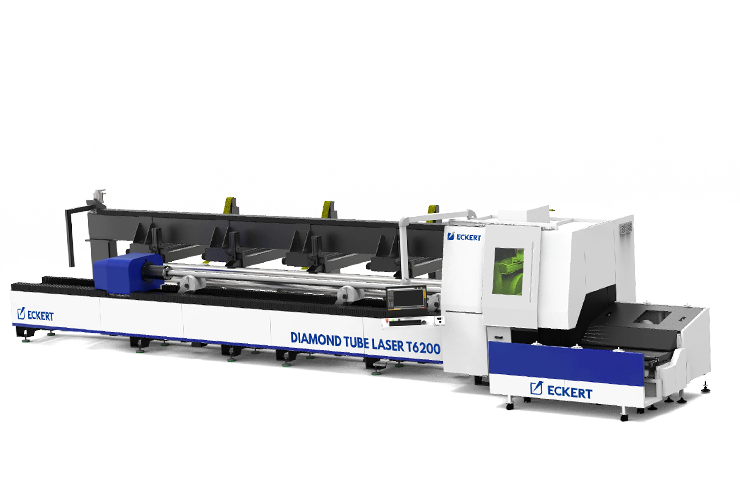

Diamond Tube Laser T6200
Perfection in tube and profile machining - flexibility for any industry
Diamond Tube Laser T6200
Perfection in tube and profile machining - flexibility for any industry
Characteristics
Machine has a reinforced body structure, using a gantry structure with a slat-wheel drive with helical teeth, which provides reliable stability, high rigidity and higher speed. The base of the machine's body is made as an integrated welded structure of high quality and durable metals.
Great variety in machining angles, open profiles and tubes with special shapes:
Optional angle cutting operation
Pioneering system allows cutting from 0° to 45° (optional). Advanced laser pipe cutter with fiber optic technology offers 4-, 5- and 6-axis heads for cutting pipes at 45°.
With intelligent laser machines, precise and fast 45° bevel cutting is possible, allowing gap-free welding and significantly reducing material consumption and human labor requirements.
Main features
- Advanced cutting with 360° flexibility
- Intelligent CNC-controlled self-centering
- Floating pipe support and horizontal pipe clamping
- Built-in workstation for safe operation
- State-of-the-art material cutting technology
- Exceptional precision and cutting speed
- Reliability thanks to top quality components from reputable manufacturers
- Technical support and service provided by a Polish manufacturer
Technology
Intelligent pipe fixing system
Intelligent pipe fixing system
The machine is equipped with an intelligent clamping system and a pneumatic chuck that provides stable and precise support for pipes of various diameters. The special design effectively eliminates deformation and vibration, resulting in high cutting quality, especially when working with long parts.
Machining of special shapes and profiles
Machining of special shapes and profiles
Unique integration of hardware and software allows the processing of a wide variety of pipe shapes, such as triangles, squares, rectangles, circles, L-profiles, channels (C), I or H sections, pentagons, oval and circular shapes, ellipses, perfect squares, octagons, truncated rectangles, half-ovals, and even some angle profiles.
Automation
Automation
Laser tube cutting systems can be optionally equipped with an automatic feeder (autoloader), which allows safe and automatic loading, including of non-standard profiles. This solution allows continuous operation of the machine and significantly increases its productivity.
Software and control
Software and control
The touchscreen user interface provides intuitive operation and quick settings, facilitating the operator's daily work. A built-in material library automatically selects optimal cutting parameters, reducing setup time and eliminating the risk of errors. Remote access to the machine and its components enables instant diagnostics and technical support, ensuring uninterrupted operation.
Cutting process and loading table area monitoring system
Cutting process and loading table area monitoring system
An optional in-cab-mounted CCTV camera provides a constant view of the work area and the cutting process - without having to stop work or open the guard. It facilitates ongoing inspection and allows to quickly catch possible irregularities or failures. An additional camera, installed behind the body of the machine, allows observation of the loading table area.
Safety
Safety
The Vector laser cutter is equipped with a light barrier controlled by an intelligent sensor system. In the interest of safety, if the sensors detect the presence of an object or person in the working area, the system will immediately stop the machine's pallet change process.
Laser head
Laser head
The cutting head, equipped with an advanced auto-focus system, ensures precise cutting of various materials of varying thickness. Integrated sensors monitor the distance to the material, ensuring process stability and minimizing the risk of collision. A built-in collision protection system reduces the risk of damage. A cooling system protects optical components from overheating, resulting in long component life.
Systems and functions
Systems and functions
Advanced technology incorporated into the machine enhances productivity and cutting precision by combining innovative solutions. Multi-stage perforation enables efficient processing of thick tubes, and the FLYCUT function speeds up the process by eliminating unnecessary head movements. The PCS system monitors perforation in real time, allowing cutting to begin immediately, and dynamic calibration further ensures stability and top quality machining.
-
Ventilation -
Fume exhaust system
-
Compressor
-
Automatic loading system
Ventilation
Fans are used to extract vapors and exhaust gases generated during metal cutting operations from the suction table. Depending on the situation, fans can be installed indoor or outdoor.
Fume exhaust system
Fume exhaust system is used to eliminate potentially dangerous fumes and dust by-products of thermal cutting operations. We offer models with filter area within the range 80 to 240 m2 and efficiency up to 15.000 m3/h. The optional spark extinguishing system guarantees damping down glowing embers and provides a longer lifetime of filter cartridges.
Compressor
A high level air preparation unit that guarantees high quality air necessary for the proper operation of the plasma source, filtering unit, abrasive dosing systems (waterjet) and cutting table. The compressor is equipped with a cooled dryer, filters and a 500 l storage tank.
Automatic loading system
Laser tube cutting machines can be equipped with automation systems, such as an automatic beam feeder that ensures safe and automatic loading - even for special profiles. This allows for uninterrupted operation and maximum productivity.
