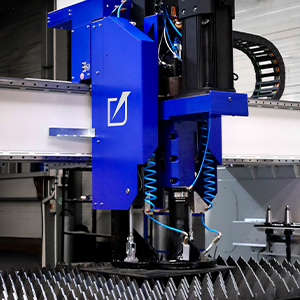

Support, equipped with features such as automatic calibration and systematic monitoring of tool wear during drilling, ensures maximum precision and repeatability of the machining process. Integrated pneumatic clamping eliminates material movement and vibration, and incremental encoders accurately determine the distance between the sheet and the tool, enhancing drilling and tapping quality. In addition, a chip blow-off system and operator safety guard guarantee clean and safe operation.

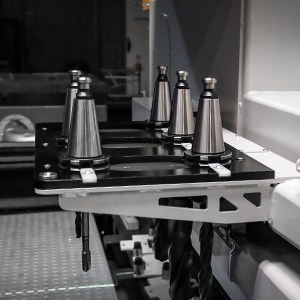

The six-tool magazine with an advanced exchange mechanism adapts to the machining process in real time. A cavity occupancy detection sensor and automatic switching between drilling, tapping and countersinking eliminate the need for operator intervention, ensuring maximum machining efficiency and precision.

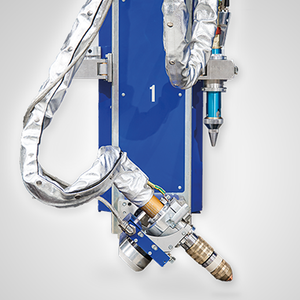

Dual Flex 3D is an all-purpose tool with exchangeable torches which allows for 3D plasma and oxygen cutting. Torch’s exchange takes only a few seconds. The application of one support for two cutting head extends the working area and extends the range of possibilities for cutting and bevelling sheet metal, pipes and profiles. An unlimited rotation and head angle deflection +/- 52° significantly increase the cutting process, especially for the production many elements on one sheet.

Support HD3000 enables full utilisation of the state of the art plasma torches.  Application of the ball screw gear and high torque servomotor is the unique drive and support leading in Z axes resolution, which allows for more dynamic and increased accuracy in the torch control. This guarantees the perfect distance between the cutting head and the material for maximum cutting quality. Support HD3000 is equipped with sensors: anti-collision, electrical/mechanical touch and height sensor. This allows using technologies such as: Contour Cut®, Contour Cut Speed®, Diameter Pro® and True Hole®.

Oxygen torch is the cutting solution destined to cut structural low-carbon and low-alloy steel. It is capable of processing wide range of material thickness. The torch was fitted out the height sensor, automatic ignition and possibility of manual angle setting.

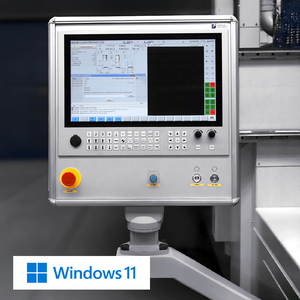

Modern industrial device equipped with a robust touchscreen made of Corning® Gorilla® Glass, designed for use in harsh environments. Thanks to its powerful components and proprietary software with extensive features and an intuitive user interface, it allows full utilization of the machine's capabilities while ensuring reliable operation. The controller is mounted on an adjustable arm with a height range of +/- 300 mm, improving ergonomics for the operator and enabling comfortable control and monitoring of the cutting process.

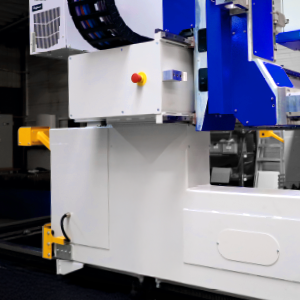

The machine has been designed to operate in extreme heavy duty conditions. A reinforced structure and a portal designed to absorb heavy loads, combined with appropriate safety features, guarantee stability during drilling. As a result, the machine can perfectly handle even very thick and hard materials.
